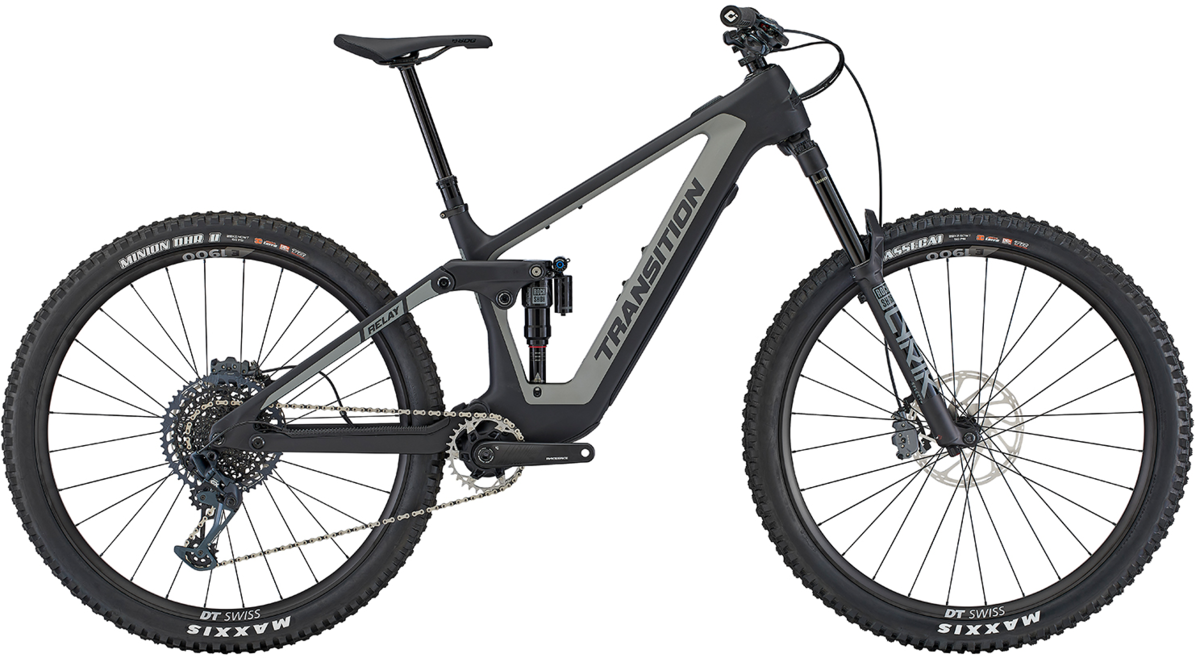

Transition Relay Carbon GX

Transition Relay Carbon GX
$8,790.00 - $8,799.00
$8,799.00
Color: Nightshadow
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

The Mountain Bikers eMTB

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

Wheel size:

Sizes X-Small: 27.5-inch
Sizes Small – XX-Large: 29-inch

Sizes:
FRAME SIZEX-SMALLSMALLMEDIUMLARGEX-LARGEXX-LARGE
FRAME STYLE RELAY/PNW RELAY/PNW RELAY/PNW RELAY/PNW RELAY/PNW RELAY/PNW
REACH 410/405 430/422 460/452 485/477 510/502 535/527
STACK (CARBON) (mm) 590/588 615/615 628/634 637/643 646/652 655/661
.STACK (ALLOY) (mm) 595/593 620/620 628/634 637/643 646/652 655/661
EFFECTIVE TT LENGTH (mm) 523/532 553/564 586/597 614/631 642/665 671/696
SEAT TUBE LENGTH (CARBON) (mm) 380 390 410 430 460 490
SEAT TUBE LENGTH (ALLOY) (mm) 410 410 410 430 460 490
EFFECTIVE ST ANGLE 79.7°/79.3° 79.1°/78.4° 78.4°/77.7° 77.8°/77.1° 77.3°/76.6° 77°/76.3°
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE (mm) 560 600 660 720 780 820
ACTUAL ST ANGLE 71°/70.6° 71°/70.3° 71°/70.3° 71°/70.3° 71°/70.3° 71°/70.4°
SEAT TUBE OFFSET AT BB (mm) 90 90 90 90 90 90
F.HEAD TUBE LENGTH (CARBON) (mm) 100 100 115 125 135 145
F.HEAD TUBE LENGTH (ALLOY) (mm) 105 105 115 125 135 145
G.HEAD TUBE ANGLE (mm) 64/63.6 64/63.3 64/63.3 64/63.3 64/63.4 64/63.4
H.CHAINSTAY LENGTH (mm) 436 442/440 442/440 448/446 448/446 448/446
I.WHEELBASE (mm) 1167/1172 1208/1211 1244/1247 1280/1282 1309/1312 1338/1341
J.BOTTOM BRACKET DROP (mm) 15/11 25 25 25 25 25
K.ESTIMATED BB HEIGHT (mm) 340/343 350 350 350 350 350
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
X-Small 143 - 158 4'8" - 5'2"
SMALL 153 - 170 5'0" - 5'7"
MEDIUM 163 - 183 5'4" - 6'0"
LARGE 175 - 190 5'9" - 6'3"
X-LARGE 183 - 200 6'0" - 6'7"

Specs

Frame Relay Carbon 160mm
Fork RockShox Lyrik Select+ (160mm)
Rear Shock RockShox Super Deluxe Select+ (205x60mm)
Rims DT Swiss E 1900 Spline 30
Hubs DT Swiss 370 Ratchet LN
Spokes DT Swiss Champion
Tires Front: Maxxis Assegai 3C EXO+ 2.5
Rear: Maxxis Minion DHRII 3C EXO+ 2.4
Crankset RaceFace Aeffect ETOR (165mm, X-Small 160mm)
Chainrings SRAM XX Direct Mount (32t)
Shifters SRAM GX Eagle Single Click
Rear Derailleur SRAM GX Eagle
Cassette/Freewheel SRAM XG 1275 (10-52t)
Chain SRAM GX Eagle
Brakes SRAM Maven Bronze
Rotors SRAM Centerline (200mm)
Handlebars ANVL Mandrel Alloy 35 XS/SM(800x20mm) MD/LG(800x30mm) XL/XXL(800x40mm)
Tape/Grips ODI Elite Flow Lock-On
Stem ANVL Swage (40mm)
Headset FSA No.55R
Seatpost OneUp Dropper Post XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Saddle SDG Bel Air 3 LUX
Pedals Sold Separately
Accessories & Extras Tubeless Valves & Sealant
Motor Fazua Ride 60
Battery Fazua Energy 430 Take Out
Controller/Display Fazua Top Tube LED Hub / Fazua Ring Control
Charger Fazua Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Nightshadow / Medium / 29-inch 769165685476 01.25.11.4928 210000090856
Nightshadow / Large / 29-inch 769165685490 01.25.11.4930 210000090837
Nightshadow / X-Large / 29-inch 769165685513 01.25.11.4932 210000090836
